YL-878 Hydraulic Auto-feeding Die Cutting Machine

FOB Reference Price:Get Latest Price
1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
YILI
Model Number:
YL-878
Voltage:
Singe/Three phase
Automatic Grade:
Automatic
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
50 Unit/Units per Month
Packaging & Delivery
Packaging Details
Plywood Case
Port
Shatou Port
Lead Time :
Shipped in 30 days after payment

YL-878 Hydraulic Auto-feeding Die Cutting Machine





Application:



Apply to cutting single layer or multiple layers of leather, rubber, plastic, cloth, foam, nylon, synthetic leather, PVC board and nonwoven cloth etc. materials.





Technical Parameter:



Model NumberYL-878
Cutting area1800x600mm
M.C.F.40tons
Power3kw
Stroke50-130mm
G.W.2800kgs
N.W.2500kgs
ColorGreen and Orange
Dimensions2940x2290x2030mm
Packing size   3100mmx2400x2300mm
VoltageSingle/Three phase
Hydraulic oil46# 48# 68#
Functioncutting
Automatic GradeAutomatic
MachineHydraulic cutting machine
Driven TypeHydraulic
TypeCutting machine
ConditionNew



Features:



a. Digital control system of “PLC + coder” human-machine interface, when punch head moving, the conveyor belt will automatically feeding, pattern arrangement and cutting. Automatically setting cutting times with high precision. The positioning precision can reach 0.2mm so as to save materials, enhance work efficiency and reduce labor intensity.





b. The material is automatic feed by double drum automaticconveyor belt. Servomotor arranges the stroke of material feeding, which can adjust it accurately. Multilayer cutting in one time enhances the working efficiency and relieve the labor intensity.







c. Servomotor dominates the horizontal movement of punch head, which can adjust the location of punch head accurately.







d. Auto, semi-auto and manual operation modes, flexible choice.







e. The double oil cylinders and precise double crank connecting rod system, to ensure that every cutting location and depth is the same and accurate.







f. Die cutter adopt permanent magnet sucker, without the need of setting die cutters, the upper and lower die cutters can carry out cutting freely with convenient operation.

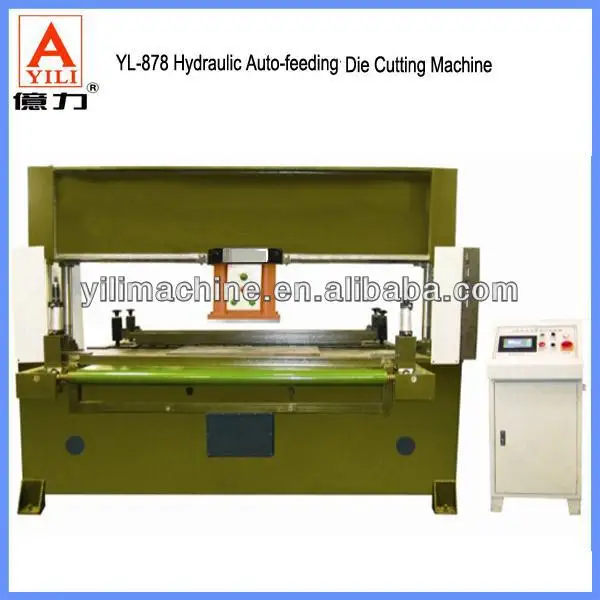

YL-878 .jpg
