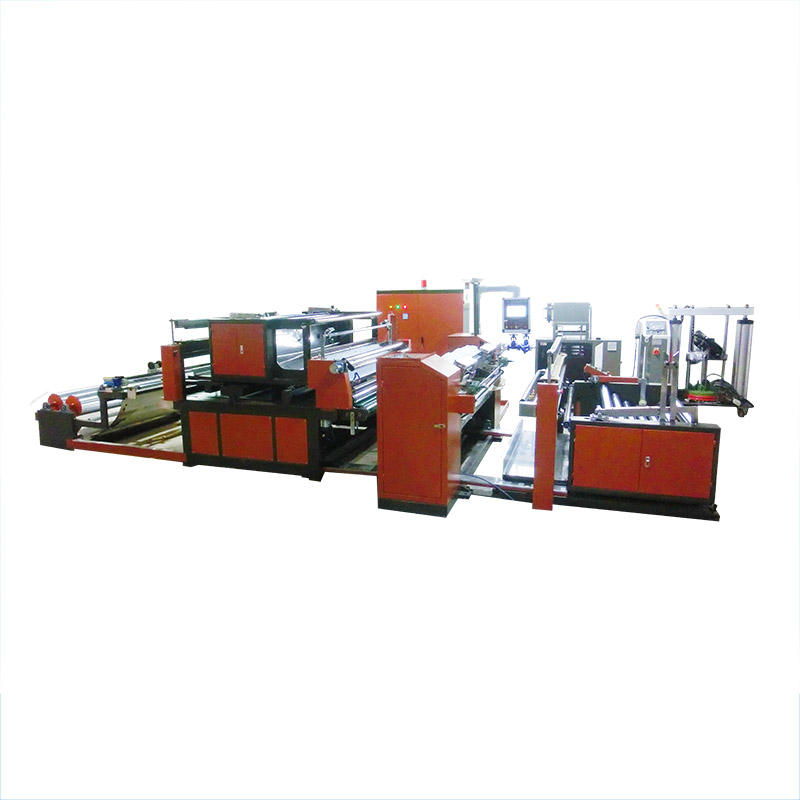

YL-1700 Hot Melt Laminating Machine PUR glue machine

 YL-1700 PUR Hot melt Laminating machine
Usages:For laminating fabrics of garments,underwears,sportswear,jackets and non-woven products.
Features:Moisture cure hot melt adhesive (PUR,TPU), which is eco-friendly,non-toxic,smell-less; with excellent bonding power on fabrics,softness,high temperature resistant,not easy to crack at low temperature,not easily affected by the environment temperature,durable elasticity,wear resistance,oil resistance,excellent antioxidant characteristics.
Technical parameters:
Machine size:8727x2308x2900mm
Overall power:AC380V/11KW
Operating speed:Up to 50m/min+
Adhesive:PUR
Coating thickness (According to the pattern of the engrave roller):3-500g/min
Equipment characteristics:
1.No solvent is added into the PUR hot melt adhesive,is the ideal eco-friendly adhesive.
2.No residual solvents in the product,no pollution emitted in production,save energy;
3.The moisture-cure process is irreversible,bonding strength and washing resistance is good;
4.PUR hot melt adhesive does not contain water or solvent,no need of heating,high composite speed;
5.High viscosity,use less glue,save cost;
6.Automatically control system,the substrate is no stretch during the whole operating process,resulting in light,soft and good hand-feel;
7.Oil heating result in fast and uniform heating;
8.Independent adhesive melting system,adhesive is speedy and thoroughly melted;
9.Dotted pattern in the engrave-roller,finished good is breathable and with high stretch-ability;
10.The machine is humanize designed, labour saving;
11.Digital control system is high performance,cost saving and applied to short-runs with more varieties of production parameters.

Typical Products Include:

1. Outside wear cloth and gym suit

2. Army garment

3. Police cloth

4. Medical dressing

5. Female underwear, seamless lingerie

6. Shoe material, sponge and cloth stick

7. Laminating of family textile

Technique Used Laminating Material: any type of textile products and non-textile products can be laminated

1. Tatting material

2. Knitting material

3. Nowoven cloth

4. Film

5. Sponge

6. PVC

7. Filtration material stick
