YL-1700 PUR Hot Melt Laminating Machine fabric coating machine
-
1 - 2 Sets
$50,000.00
-
>=3 Sets
$48,000.00
- Model Number:
- YL-1700
- Samples:
-
YL-1700
- Shipping:
- Support Sea freight
- Lead Time:
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 15 Negotiable
- Customization:
-
Customized logo (Min. Order: 1 Sets)Customized packaging (Min. Order: 1 Sets)
- Applicable Industries:
-
factory
- After Warranty Service:
-
Video technical support, Online support
- Local Service Location:
-
None
- Showroom Location:
-
None
- Video outgoing-inspection:
-
Provided
- Machinery Test Report:
-
Provided
- Marketing Type:
-
Hot Product 2019
- Warranty of core components:
-
1 Year
- Core Components:
-
PLC
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
YiLi
- After-sales Service Provided:
-
Video technical support, Online support, Engineers available to service machinery overseas
- Warranty:
-
1 Year
- Product name:
-
Laminating Machine
- Usage:
-
Laminate fabric&foam
- Power:
-
AC380V/60.5KW
- Width:
-
1200-3600mm
- Adhesive:
-
PUR
- Operating speed:
-
50m/min+
- Coating thickness:
-
8-500g/min
- weight:
-
5309kg
- Total Size:
-
7450x2443x2308mm
- Supply Ability:
- 3 Set/Sets per Month
- Packaging Details
- plywood carton.
- Port
- Shantou/shenzhen
- Picture Example:
-
- Lead Time :
-
Quantity(Sets) 1 - 1 >1 Est. Time(days) 15 To be negotiated
Online Customization

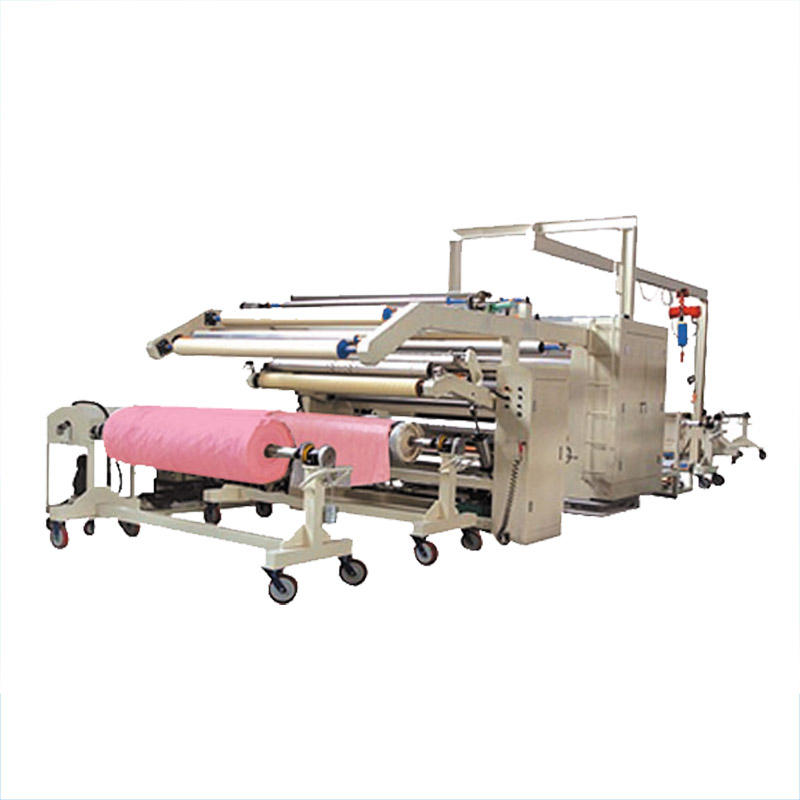

YL-1700 PUR Hot melt Laminating machine
Usages:
For laminating fabrics of garments,underwears,sportswear,jackets and non-woven products.
Features:
PUR Hot-melt laminator has been used in laminating industry for many years, it's developed machine with the merits of high-accuracy and stable usage. Glue can be converted on the fabric through the dot roller, after hot pressing, it can takes fabics stick together firmly. At present, this laminator is widely applied in underwear industry. Most of fabrics and materials are elastic and soft in underwear production. That is a big challenge for hot-melt laminator. YiLi company launched the hot-melt laminator to meet the need in underwear industry, it's easy operation as the reasonable structure,even though 1-2 yards of material pattern making is also very convenient. It's specifical equipment for the underwear industry (elastic fabric) application.
Moisture cure hot melt adhesive (PUR,TPU), which is eco-friendly,non-toxic,smell-less; with excellent bonding power on fabrics,softness,high temperature resistant,not easy to crack at low temperature,not easily affected by the environment temperature,durable elasticity,wear resistance,oil resistance,excellent antioxidant characteristics.
Equipment characteristics:
1.No solvent is added into the PUR hot melt adhesive,is the ideal eco-friendly adhesive.
2.No residual solvents in the product,no pollution emitted in production,save energy;
3.The moisture-cure process is irreversible,bonding strength and washing resistance is good;
4.PUR hot melt adhesive does not contain water or solvent,no need of heating,high composite speed;
5.High viscosity,use less glue,save cost;
6.Automatically control system,the substrate is no stretch during the whole operating process,resulting in light,soft and good hand-feel;
7.Oil heating result in fast and uniform heating;
8.Independent adhesive melting system,adhesive is speedy and thoroughly melted;
9.Dotted pattern in the engrave-roller,finished good is breathable and with high stretch-ability;
10.The machine is humanize designed, labour saving;
11.Digital control system is high performance,cost saving and applied to short-runs with more varieties of production parameters.
Typical Products Include:
1. Outside wear cloth and gym suit
2. Army garment
3. Police cloth
4. Medical dressing
5. Female underwear, seamless lingerie
6. Shoe material, sponge and cloth stick
7. Laminating of family textile
Technique Used Laminating Material: any type of textile products and non-textile products can be laminated
1. Tatting material
2. Knitting material
3. Nowoven cloth
4. Film
5. Sponge
6. PVC
7. Filtration material stick
