YL-2C Bra Cup Hydraulic Swing-arm Cutting Press

FOB Reference Price:Get Latest Price
1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
YILI
Model Number:
YL-2C
machine:
Hydraulic cutting press machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
40 Unit/Units per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Shantou
Lead Time :
Shipped in 30 days after payment

YL-2C Hydraulic Swing-arm Cutting Press



Specifications

1. High precision ,operate easy
2. long history in making product
3. competitive cost, high quality



Applications:

For industrial grade die cutting soft plastic sheets, leathers, fiberfill, fabrics, hard-boards or other

similar materials.



Features:

1.With automatic lubricating  system, reduce wear and extend service time.

2.Using electrionic delay circuit to precisely control cutting stroke, resulting in high quality products.

3.Using turning hand-wheel to adjust distance between swing-arm plate and cutting platfor, simple, reliable and convenience.



Parameter:



Place of OriginChina (Mainland)
ColorGreen and Orange
Cutting table900x400mm
M.C.F.16tons
Stroke10-100mm
Power2HP
Dimensions900x760x1260mm
Packing size1000*860*1460mm
Votage3 phase 380V;50Hz
N.W.470kgs
G.W.550kgs









.JPG






.JPG



Remark: We can make the machine according to your specifically order,

for example the color, the motor information ,the working table etc.







Other products in our company





YL-8580()3010×1050×2380



YL-8580 Multi-feature(Half Piece Bra)Molding Machine



3D-1

3D-1 Automatic Foam Skiving Machine



YLV-

YLV- Vacuum Forming Machine(Single Mold)



YL-WB869

YL-WB869 Laminating Machine

A6-F2380×2130×1920AC380V7.5KW1250kg

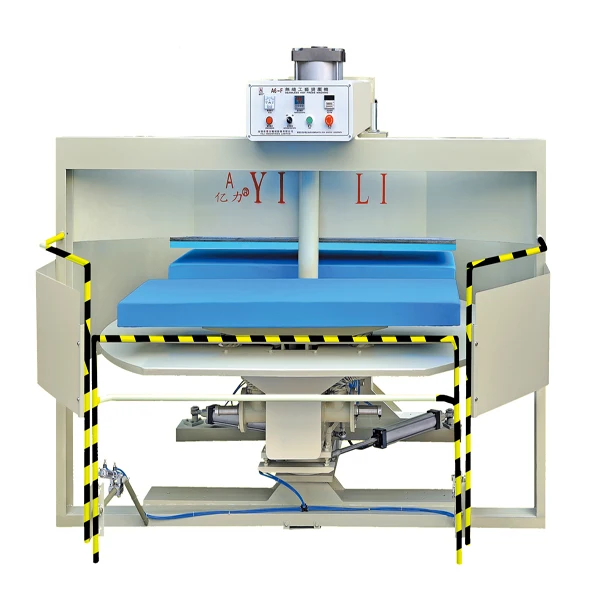

A6-F Seamless Hot Press Machine



D1-A(850×880×2170360kg)

YL-8565 Intelligent Environment Friendly Machine



A2-A(1460×690×1950)

A2-A Bra Pad Molding Machine



oil bag machine and punching machine

YL-280 Oil Bag Machine and Punching Machine

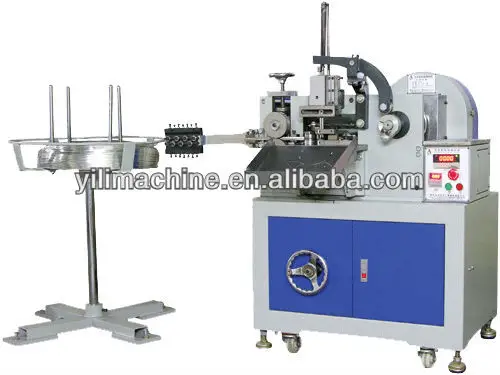

Bra-cup Wire Forming Machine











DSC00502



molds



12

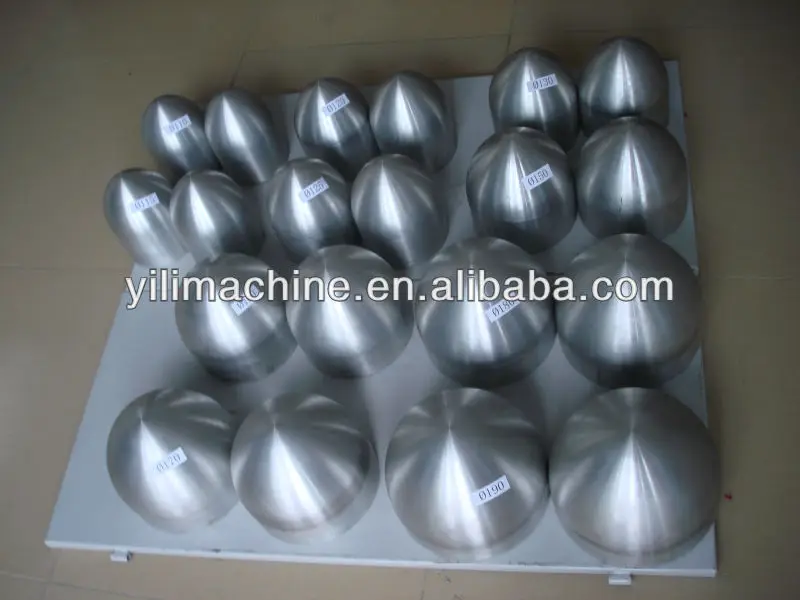

Bra Cup Molds
