YL-918 Spray Glue fabric laminating machine

FOB Reference Price:Get Latest Price
$35,000.00 - $40,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
918
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
YILI
Machine name:
fabric laminating machine
glue type:
water base glue
Transmission speed:
0~12m/min
Sprayer gun travel speed:
100~1100mm/min
Laminating Materials:
PU glue
Suitable laminating materials:
fabric, foam
Weight:
3100kg
Lead time:
35 Days
Key words:
coating machine, laminating machine
Speed:
Up to 50m/min
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood Carton.
Port
Shantou/Shenzhen

YL-918 foam to fabric Cool Glue Spray laminating machine





Usages:

This machine is for the laminating two materials.

Fabric to fabric, foam to fabric, foam to foam, etc.



Features:

1) 4 Spraying guns precisely and uniformly spray the adhesive onto one of the material, the other material will be aligned and joined with the sprayed material, pressed together by a pressure roller then cure, No heating is required to cure the glue.



2)The high performance spraying guns turns the adhesive into fine mist with precise quantity, creating a strong bonding between the two materials and resulting in a soft and breathable lamination.



3)The Spray Laminating Machine is equipped with infrared edge-sensing and alignment system, which will automatically align the edges of the two materials, resulting in good quality and material saving. It also equipped with adjustable-tension feeding and rewinding systems, allowing the materials to be laminated and rewound with uniform tension, achieving a stronger and non-wrinkles bonding.



4)This machine use PU adhesive, making the product stretchable, flexible and can withstand multiple washing.



5) 3rd generation spray laminating machine, improved and perfected based on the previous models, handling all type of intimates material lamination, overcoming adhesive leaking and deformation issues in bonding power nets and vertical fiberfill.





Parameter:



Power

AC380V/4.0KW



Air pressure



0.6Mpa



Transmission speed



0~12m/min

Sprayer gun travel speed

100~1100mm/min

Spray gun travel distance (single side)



50~850mm



Max material width



1650mm



External dimensions



7500mm×2300mm×2100mm



Weight



3100kg

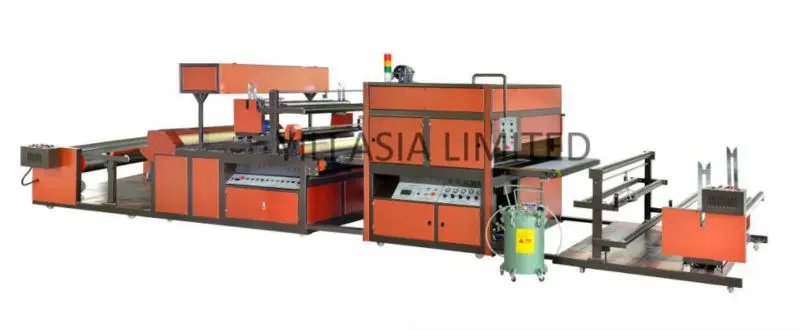

  YL-918 Spray Laminating Machine(Third Generation).jpg

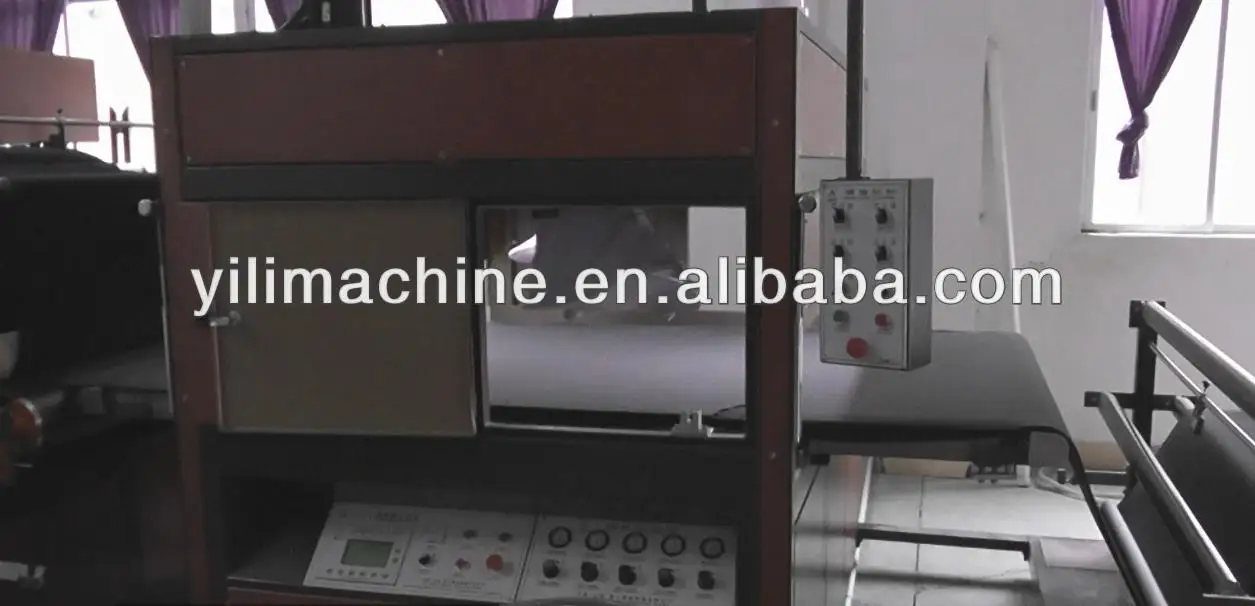

                     YL-918 Spray Laminating Machine (Third Generation)




                          YL-918 Spray Laminating Machine (Second Generation)









1375800145979 (1).jpg
