YL-VF8580 Multi-feature Bra Cup Molding Machine

FOB Reference Price:Get Latest Price
1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
YILI
Model Number:
YL-VF8580
Feature:
Bra Molding Machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Plywood Case.
Port
Shantou /Shenzhen
Lead Time :
30 DAYS

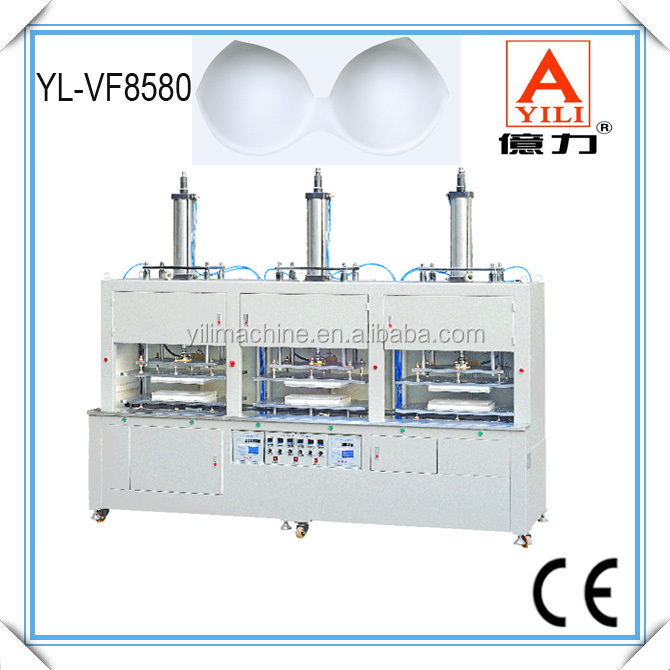

YL-VF8580 Multi-feature (Half Piece Bra) Molding Machine



Main Features:



This molding machine is widely used to mold half-piece-bra with steel wires&plastic bones,

also for bra pads with water bags, oil bags and air bags. This machine has the feature of precise

placement, easy operating, low failure rate, high efficiency and do not need skilled operator.





Features:

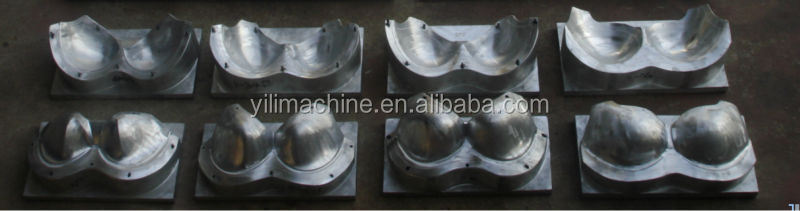

  • This is the multifunction molding machine with three sets of top molds and two sets of bottom molds, all operations are integrated;
  • The bottom mold can be setup as left/middle or right/middle according to the production requirement; (Such as hidden steel wires, oil bags, plastic bones, etc.)
  • Save a lot of manpower, improve work efficiency and reduce mold counts.



Technical Parameter:



PowerAC380V/4.2KW(Single mold)
Compressed air0.4~0.8Mpa
Molding time0~999s
Heating area

420mm×220mm

550mm×250mm

External dimensions

2440mm×800mm×2150mm

3000mm×800mm×2190mm

Weight1400kg

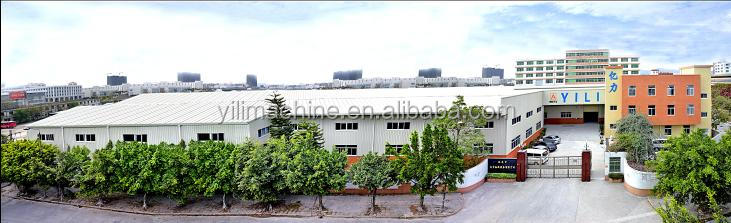

Company Information 1.JPG
