D1-PD One Piece Bra Fabric Cup Molding Machine

FOB Reference Price:Get Latest Price
$1,500.00 - $2,000.00 / Unit | 1 Unit/Units (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
YILI
Model Number:
D1-PD
mold:
bullet mold
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood Carton.
Port
Shantou
Lead Time :
Shipped in 30 days after payment

                             D1-PD Bullet Post Molding Machine



Main Feature: For post-molding fabric one piece bra.



Applicable Mold: Bullet mold.





Features:



1. This post-molding machine has an unique apperance and rigid structure design.

2. Equipped with 2 pneumatic clamping arms, 4 toggle clamps, 1 center gore holding bar

and 4 strap posts to precisely secure the garment, easy to adjust and set, high performance

and yield rate;

3. Bullets punching depth is continuously adjusted and controlled by hand wheel, with digital

display to show the set depth.



Technical Parameters:



  • Power: AC220V/4.2KW
  • Compressed Air: 0.4~0.8Mpa
  • Molding Time: 0~999s
  • Bullet Diameter: Ø70mm~Ø175mm, Ø70mm~Ø220mm
  • External Dimensions: 760mmX760mmX2150mm
  • Weight:307kg











.JPG

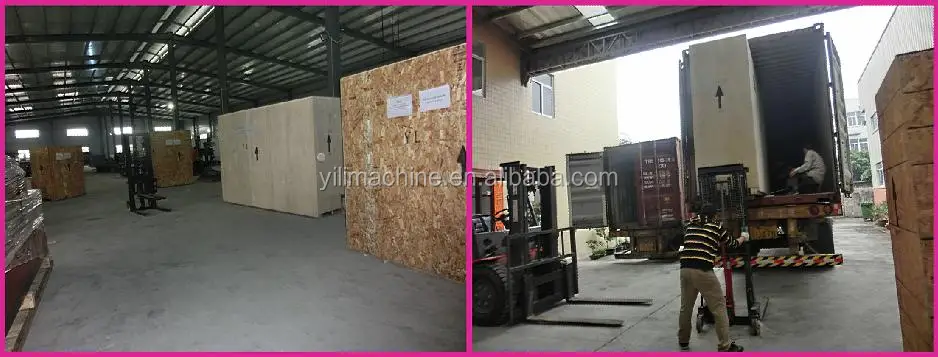

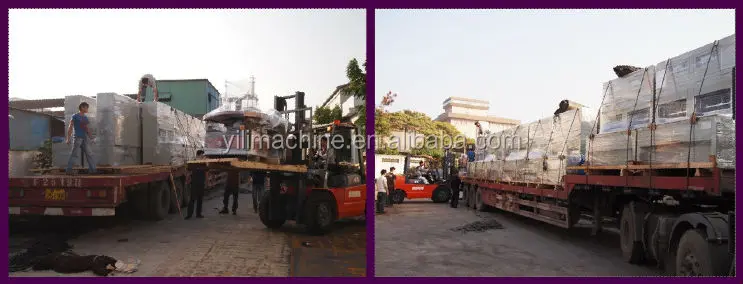

package & shipment 3.jpg
