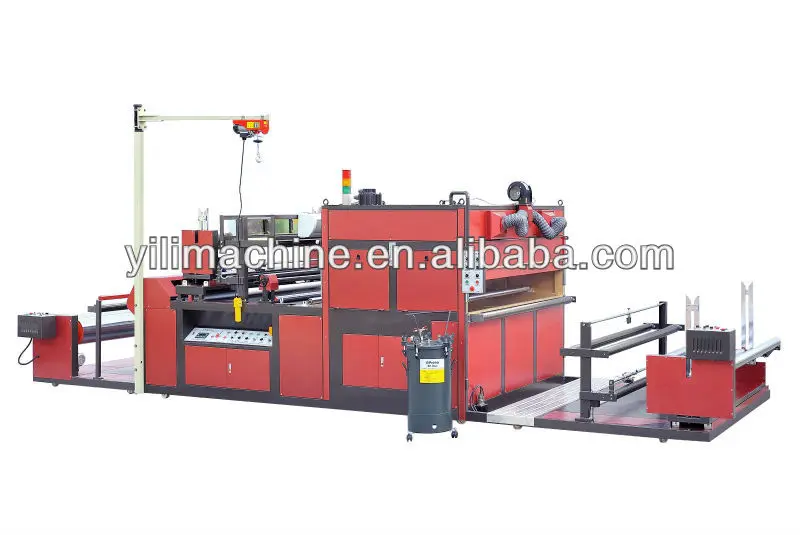

YL-918 Spray Laminating Machine for Bra fabric

FOB Reference Price:Get Latest Price
$34,000.00 - $36,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
YL-918
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Power(W):
4.0KW
Dimension(L*W*H):
8580mm*2387mm*2100mm
Weight:
3100kg
Warranty:
1 year
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
YILI
Voltage:
AC380V
Certification:
CE
Application:
materials lamination
Automatic Grade:
Automatic
Features:
Automatic
Production Capacity:
0-12m/min
Product Name:
water base laminating machine
Machine name:
water base laminating machine
laminating machine:
spray cold fabirc lamination
Applicable usage:
Lingerie Industry
Laminating Materials:
PU glue
Speed:
0-12m/min
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case
Port
Shantou
Video Description

YL-918 Spray Glue Laminating Machine  (Second Generation)



Product Description

 Features:

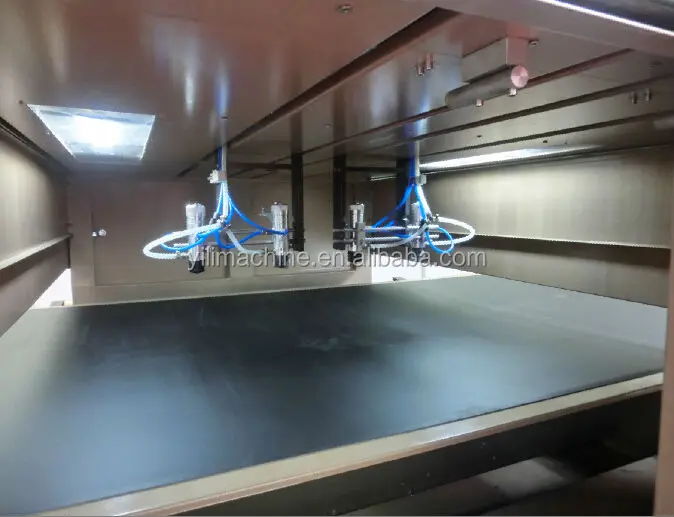

(1) 4 Spraying guns precisely and uniformly spray the adhesive onto the surface of  material, the other material will be aligned and joined with the sprayed material, pressed together by a pressure roller then cure, No heating is required to cure the glue.



(2) The high performance spraying guns turns the adhesive into fine mist with precise quantity, creating a strong bonding between the two materials and resulting in a soft and breathable lamination.



(3) The Spray Laminating Machine is equipped with infrared edge-sensing and alignment system, which will automatically align the edges of the two materials, resulting in good quality and material saving. It also equipped with adjustable-tension feeding and rewinding systems, allowing the materials to be laminated and rewound with uniform tension, achieving a stronger and non-wrinkles bonding.



(4) This machine use PU adhesive, making the product stretchable, flexible and can withstand multiple washings.





Technical parameters:



Power

AC380V/4.0KW

Air pressure

0.6Mpa

Transmision speed

0~12m/min

Sprayer gun travel speed

100~1100mm/min

Spray gun travel distance (single side)

50~850 mm

Max material width

1650mm

External dimensions

7500mmX2387mmX2100mm

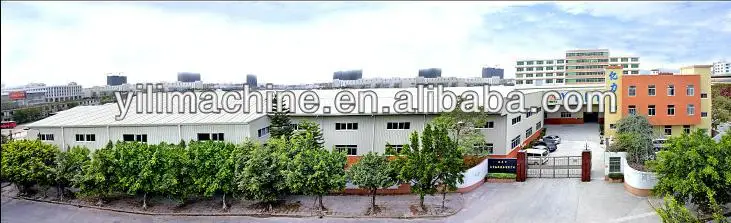

Company Information



 Company Information 1.JPG






 Packaging & Shipping

yili 2.JPG



package & shipment 2.jpg







Our Services



Professional Technical Advisor



Engineers available to service machinery overseas




Remark

If you have any enquiries, pls call or e-mail us. Thanks for your support!
